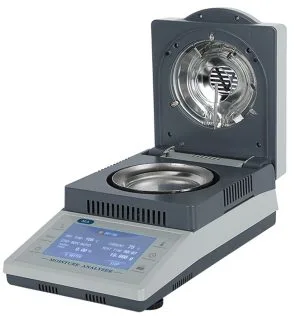

Series Halogen Moisture Analyzer

Halogen Moisture Analyzer Features: Halogen quartz glass heater 400W Touch screen LCD display with backlight Stainless steel chamber RS232 Interface supply as standard for data output Universal power supply 110V-250V supplied as standard Internal memory for automatic sequence of 6 drying processes The last measurement value remains on the display until a new measurement is made. Spec: Model No MA105MW MA102MW MA100MW Capacity 110g 110g 110g Readability 0.005g 0.002g 0.001g Moisture readability 0.10% 0.04% 0.01% Dry residual readability 0.10% 0.04% 0.01% Display touch screen LCD Calibration External Pan Size Φ90mm Dimensions(L*W*H) 330*180*140mm Gross Weight 4500g Heat Source Halogen Lamp Temperature sensor PT-100 Temperature range 40-180℃ Temperature step 1℃ Moisture range 0.00%-100.00% Dry residual range 100.00%-0.00% Temperature setting 40℃-180℃ by 1℃ step Time setting 1-99 min by 1s step Number of storage 6 Heater 220V+/-15% 50Hz, 115V+/-15%, 400W Balance 220V+/-15% 50Hz, 115V+/-15%, output DC 9V To understand the fundamental principles common to all types of Moisture Analyzer, be sure to read our main article: What Is a Moisture Analyzer.
