100 Orbital Shaker

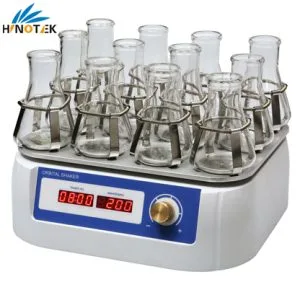

Product Information The OS-100/OS-200 Orbital Shaker is a powerful variable speed shaker which provides efficient orbital motion. Speed and time are under microprocessor control. The OS-200/OS-100 shaker can be applicable in different labs: microbiology, chemistry, immunology, biochemistry and molecular biology. Features 1. Digital speed control 2. Speed range 50-250 RPM 3. Orbit 20 mm 4. Digital timer 1min – 99h59min 5. Universal platform, flat platform or platforms with clamps (see below) 6. Maximum load capacity 2.5 kg 7. Orbital Shaker can be used in a cold room or incubator 8. Operating ambient: temperature range +5°C to +40°C 9. Overall dimensions: 280 x 270 x 110 mm 10.Weight: 7.2kg 11.Power supply: DC24V Platforms for OS-200 P P 1 2 – 1 0 0 Platform with clamps for flasks, 100-150ml P P 0 6 – 2 5 0 Platform with clamps for flasks, 250-300ml U P – 1 Universal platform with adjustable bars for different types of flasks, bottles P P – 1 Flat platform with non-slip rubber mat Technical Data Model OS-200 OS-100 Shaking Speed 50~250rpm 50~300rpm Orbit 20mm 10mm Independent timer 1min~99h59min 1min~99h59min Load capacity See below table See below table Load capacity 2.5kg 3.0kg Motor DC brushless DC brushless Operating ambient 4-45°C 4-45°C Dimension(L x W x H) mm 280 x 270 x 110 280 x 270 x 110 Accessories Interchangeable platforms for OS-100/OS-200 Code Description AS-04021-01 PP-1 Flat platform with non-slip rubber mat AS-04021-02 PP12-100 Platform with clamps for flasks, 100-150ml AS-04021-03 PP06-250 Platform with clamps for flasks, 250-300ml AS-04021-04 UP-1 Universal platform with adjustable bars for different types of flasks, bottles AS-04021-05 MP-1 Platform with springs To gain a deeper understanding of working principles, types, and selection criteria…
